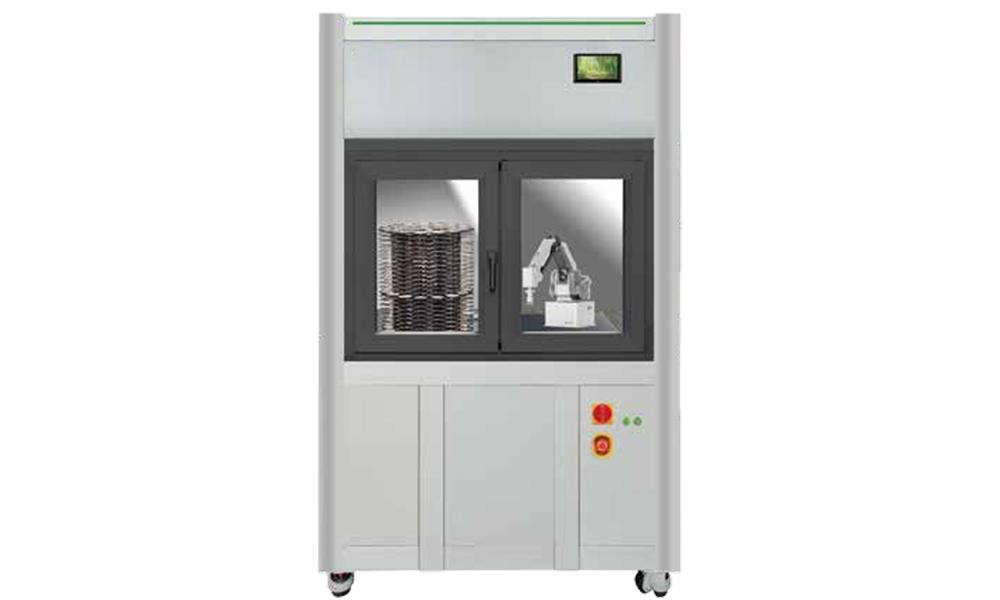

AWS Automatic Weighing System with Constant Temperature and Humidity

The AWS (Automatic Weighing System ) is an intelligent filter membrane automatic weighing platform featuring constant temperature and humidity, static elimination, four-level shock protection, automatic filter membrane recognition, and Class 1000 cleanliness. This precision instrument automatically weighs filter membranes used for collecting atmospheric particulate matter (PM1.0, PM2.5, PM10, and TSP) while archiving the entire weighing process. AWS (Automatic Weighing System ) also supports constant temperature and humidity equilibration, automatic batch weighing, and cloud-based mass concentration calculation for low-concentration sampling heads, No. 3 filter cartridges, and various filter membrane sizes.
The device incorporates a high-precision constant temperature and humidity control system to maintain stable environmental conditions. A four-axis robotic arm transfers samples for weighing, featuring free rotation and vertical movement to rapidly access any sample placement position.

Product Features

1. Equipped with high-precision temperature and humidity sensors inside the working chamber for real-time monitoring of environmental changes. Combined with PID control for enhanced precision.

2. Equipped with an air purification system achieving ISO 14644 CLEAN ROOM CLASS 6 air cleanliness standards.

3. Features scheduled activation for the weighing chamber environment, initiating the constant temperature and humidity system at the customer’s designated time for energy efficiency and environmental protection.

4. Adjustable airflow speed with differential pressure alarm functionality alerts customers to replace air filters when pressure differential becomes excessive.

5. Features an automatic low-water-level alarm that shuts down the constant temperature and humidity system.

6. Shares a single storage tower for 47mm and 90mm filter membranes, eliminating manual tower switching.

7. No need to change the transport fork or balance accessories when switching samples. This transport fork design accommodates 47mm and 90mm filter membranes, low-concentration sampling heads, #3 filter cartridges, and plankton culture dishes.

8. Supports mixed weighing functionality; a single weighing task can include filters of various materials, concentration sampling heads, No. 3 filter cartridges, and plankton culture dishes.

9. Features volume table import, automatic concentration calculation, and concentration data export capabilities.

Sample Batch Processing Capacity

• 47mm filter membranes (single batch): 224 PCS
• 90mm filter membranes (single batch): 112 PCS
• Low-concentration sampling heads (single batch): 42 units
• No. 3 filter cartridges (single batch): 42 units
• Plankton culture dishes: 21 units
• The above is the standard configuration，other options are available for customization.

Applictions

• Automatic weighing of filter membranes for environmental monitoring stations
• Weighing of various filter membranes in meteorological monitoring
• Weighing of filter membranes for scientific research, education, third-party testing, and related fields
• Weighing of low-concentration sampling heads for pollution sources
